PRODUCT OVERVIEW

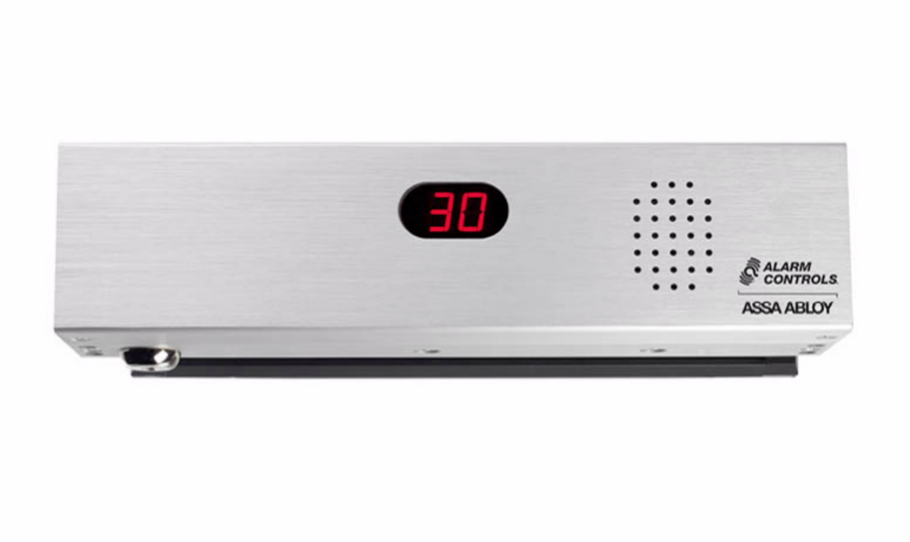

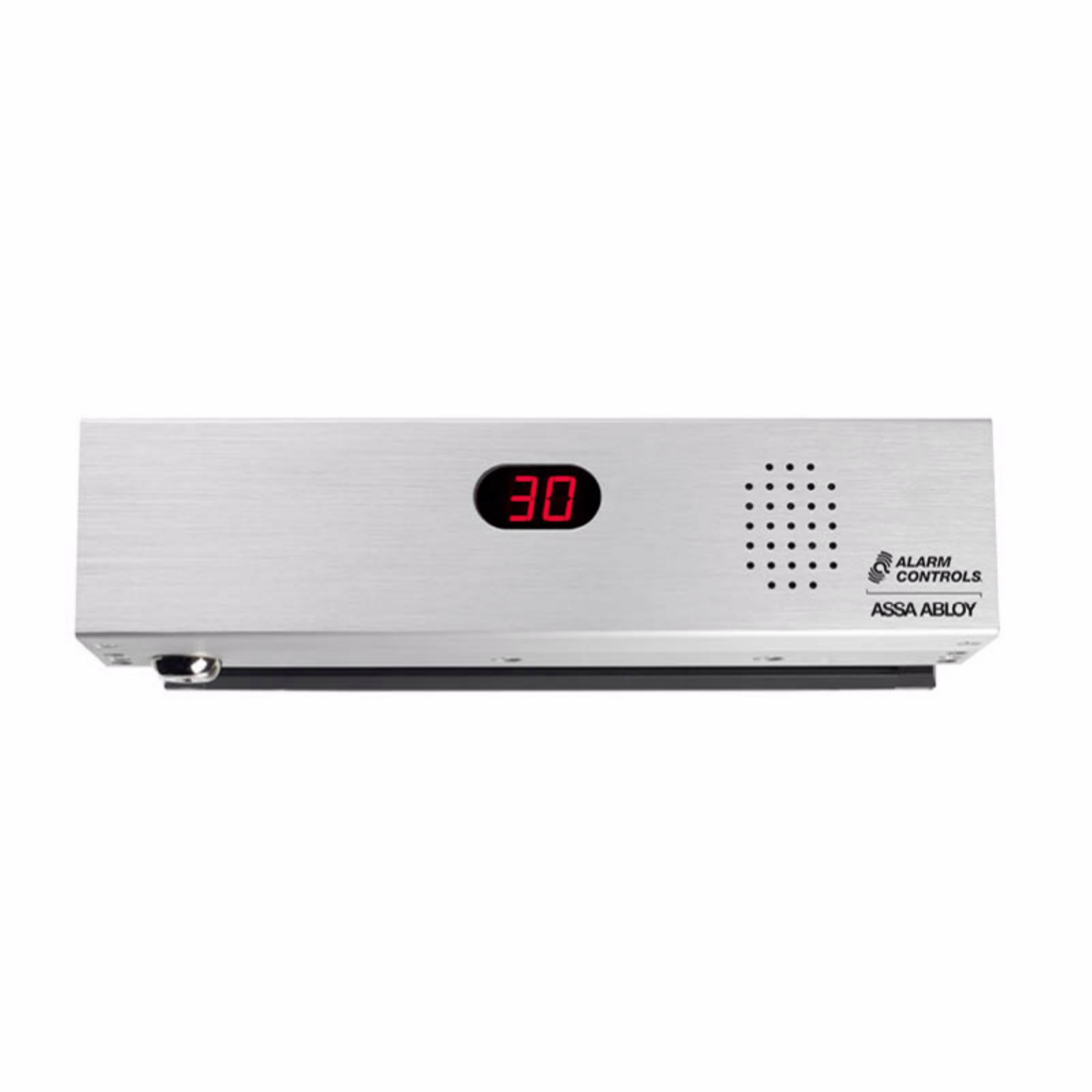

Alarm Controls 1200DE bracket mounted, single magnetic lock with 1200 lbs of holding force that can be easily installed without special tools.

Designed for applications that require a locking feature that delays the opening of a door. Includes integrated key reset, digital display, and field configurable settings.

Code specific models also available. For use on interior and perimeter exit, single, out-swinging doors.

STANDARD FEATURES

• Choice of English, French/English or Spanish/English voice message
• Digital countdown LED display
• Door prop alarm
• Energy savings mode
• Field configurable settings include:
  • Voice message language
  • Choice of voice and alarm tone
  • or alarm tone only
  • Nuisance delay times 0, 1, 2, 3 seconds
  • Bypass delay times 0, 10, 15, 30 seconds
  • Door movement activation
  • Auto or manual relock
• Integrated two function keyswitch; Bypass (REX) and alarm reset
• Required sign included
• Clear anodized (US28) finish standard

DIMENSIONS

• Magnet size: 10 1/2 inches L x 2 7/8 inches H x 2 3/4 inches W
• Armature housing size: 9 3/4 inches L x 3 inches H x 1 inch D

POWER

• 12 or 24 VDC input voltage, Auto Sense
• Max current draw:
  • 825 mA @ 12 VDC
  • 490 mA @ 24 VDC

MODELS/OPTIONS

• 1200DE: Standard Model with selectable Nuisance & Bypass delay times
• 1200DE-CA15S: California-required, 15 second exit delay (fixed)
• 1200DE-CA30S: California-required, 30 second exit delay (fixed)
• 1200DE-CH: Chicago-required, 15 second exit delay, 1 second nuisance delay, and 0 second bypass time (fixed)

CERTIFICATION

• UL 294
• UL 10C

FINISH

• Clear Anodized (US28) finish is standard

WARRANTY

• Limited Lifetime Warranty
•
