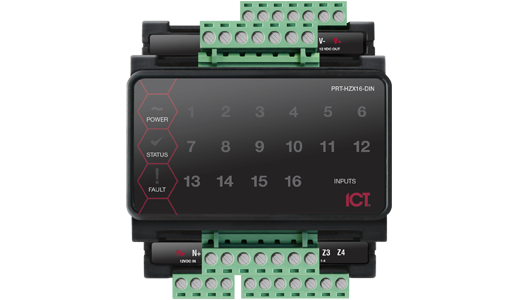

The Protege Half DIN Rail 16 Input Expander provides an additional 16 inputs to the Protege system, an advanced technology security product providing seamless and powerful integration of access, security and building automation. The Input Expander provides extensive hardware advancements that allow flexible input programming and configuration, and is designed for use with industry-standard DIN rail mounting.

Key Features:

• Expands the Protege system by 16 inputs
• Connect any combination of normally closed or normally open inputs
• Compact two-tier half DIN rail module design
• Utilizes analog to digital processing with 5x over sampling
• 4 state input alarm using resistors to provide short, alarm, closed and tamper conditions
• High Performance 32 Bit processor
• Secure encrypted RS-485 module communications
• Online and remote upgradable firmware
• Designed for use with Industry Standard DIN Rail Mounting

Power Supply

Device power is supplied from a 12VDC input. Ultra low current requirements ensure cost effective power distribution.

Small Footprint

The compact two-tier half DIN Rail module design takes up less valuable real estate to provide more control in less space.

Communication

Single RS-485 communication interface port used for all network communication functions and interconnects to other modules.

Upgradable Firmware

Utilizing the latest flash technology and high performance communication mediums, the firmware can be updated using the Loadit utility over the system module network.

Connectivity and System Expansion

Expanding the Protege System with local inputs from the Input Expander allows convenient cost effective expansion:

• 16 inputs can be assigned to any 4 areas in the system each being processed using different options or features
• Address configuration is achieved using the address programming feature of the Protege System Controller
