Featuring two full size product bays, the 1 x 2 enclosure is ideal for mounting a power supply and battery, or two expander modules in remote location.
Easy Access and Maintenance

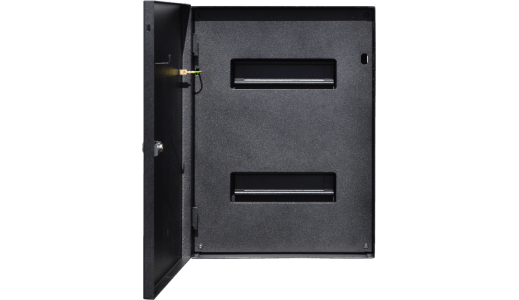

The 1 x 2 DIN Rail Enclosure has a removable door for fast simple mounting and maintenance. Space is provided above and below DIN module locations for finger trunking or use of the cable tie points for secure, clean wiring. An internal windowed cover protects wiring and provides a professional look to the installation, while still allowing easy access to the front panel LED indicators of the modules. Featuring two full size product bays, the 1 x 2 enclosure is ideal for mounting a power supply and battery, or two expander modules in remote locations *.
Contains a knockout for a standard panel mount IEC mains voltage connector. Multiple knockouts for trunking and field wiring are available in convenient locations on the cabinet body. Bonding wire looms for earth connection to the cabinet and door are supplied.
Supplied with a cabinet accessory pack including:
May also be used with:

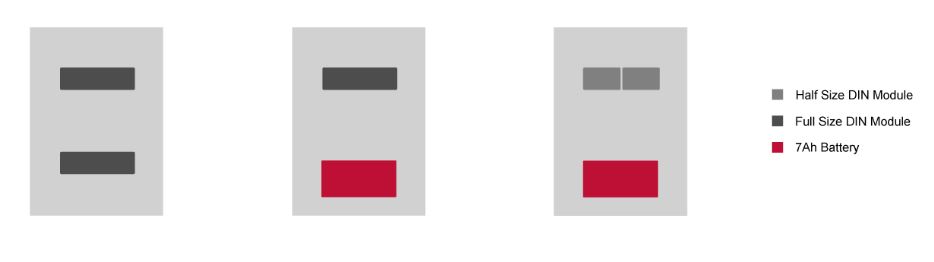

* One product bay must be allocated for every 7Ah battery you want to fit.
